Teltonika

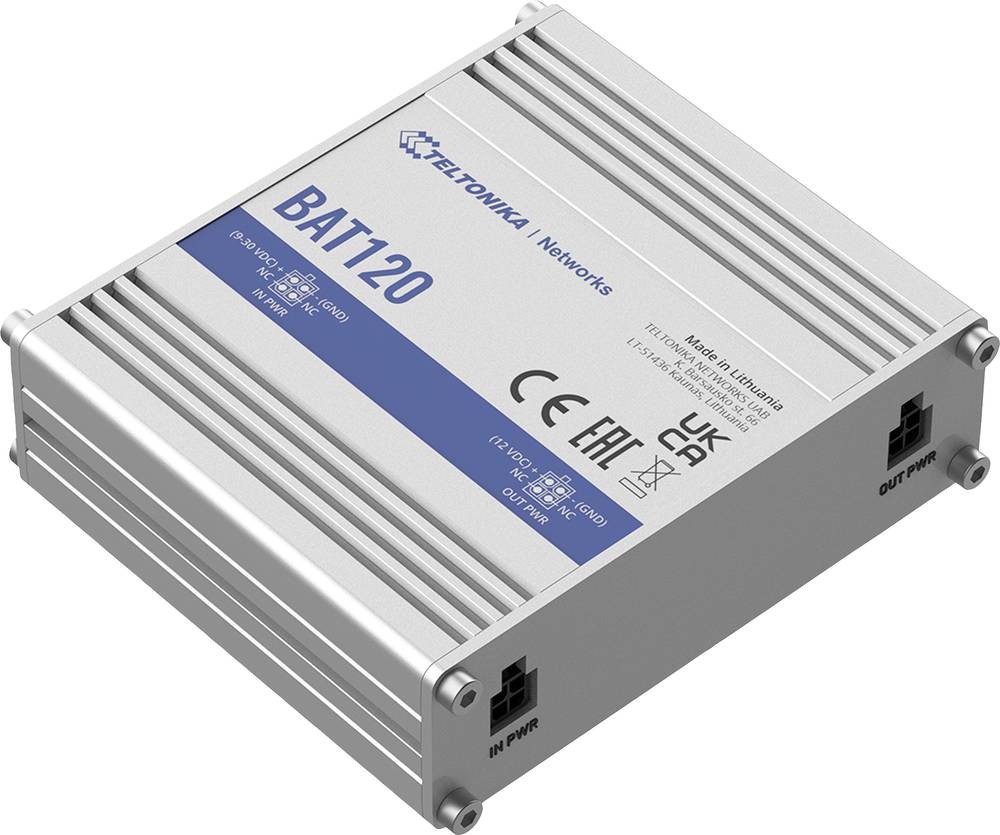

Teltonika BAT120 BAT120000000 USV-Erweiterungsmodul
BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features. This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur. Weight & dimensions Width: 100 mm Depth: 85 mm Height: 30 mm Weight: 315 g Operational conditions Operating temperature (T-T): 0 - 45 °C Certificates Certification: CE/RED, UKCA, EAC Packaging content Manual: Yes Battery Battery technology: Lithium-Ion (Li-Ion) Battery capacity: 2.3 Ah Battery voltage: 3.7 V Number of battery cells: 2 Design Form factor: Compact Product colour: Stainless steel Housing material: Aluminium LED indicators: Power, Status Compatibility: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100 Features UPS topology: Line-Interactive Output power: 22 W Waveform: Sawtooth Input operation voltage (min): 9 V Input operation voltage (max): 30 V Input frequency: 50 Hz Output operation voltage (min): 9 V Output operation voltage (max): 30 V Power protection features: Over current, Over voltage, Reverse polarity Audible alarm(s): Yes Power source type: DCVisa mer
Erbjudande
Alla priser inkl. moms; frakt enligt butikens feed. Klicket leder direkt till produktsidan i butiken.
Produktdetaljer
- Märken
- Teltonika
- GTIN
- 04779027312910
